LK-HHPD High Speed InGaAs Photodetector
- Whānuitanga Whānui, Tere Tere
- Te Urupare Nui
- Whakauruhia te Pīhanga-T
- Te urunga mātotoru teitei
- Hononga SMA kua hiritia ā-hiri
- He iti te au pōuri, he teitei te ōwehenga tohu-ki-haruru.
- Āhua Iti.
Whakaahuatanga Hua
He waeine kite tere-teitei a LK-HHPD e tika ana mō ngā tono matihiko me ngā tono anaro, kei roto ko te photodiode PIN InGaAs e kapi ana i ngā roangaru mai i te 1250 ki te 1650 nm. Ka tukuna e ia he whānui o te 12 GHz, 18 GHz rānei, ā, ka oma i runga i te mana +5V. Ka hototahi te waeine ki te muka aratau-kotahi paerewa 9/125μm, ā, he hononga SMA mō te putanga RF me te taurite aukati 50 ohm.
He pai te LK-HHPD mō ngā tono tere-raraunga teitei, he mea hiri ā-kiri hei tiaki i a ia mai i ngā āhuatanga taiao, kia pono ai, kia roa ai hoki te ora. He māmā te hoahoa, he iti iho i te 23 karamu te taumaha, he mea whai hua mō ngā tono kawe, ngā tono iti-wāhi rānei. Kua whakamanahia te kōwae kia tutuki i te Restriction of Hazardous Substances (RoHS) Directive 2.0, e whakaatu ana i te piripono ki ngā paerewa taiao me te haumaru.
Whakatakotoranga Hangarau
| Whakatauranga Noa me te Whakatauranga Mōrahi Tino | ||||
|---|---|---|---|---|
| tawhā | Sym. | momo | whakatauranga | Unit |
| Whai wāhi pāmahana rokiroki | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Awhe pāmahana o te kēhi whakahaere | TC | 25 | -40 ～ +85 | ℃ |
| Ngaohiko Pīra | VR | 5 | +4.75 ～ +5.25 | V |
| Mana Whakauru Whatu | Pin | 0 | + 13 | dBm |
| Mana Whatu Pakaru | PB | - | + 16 | dBm |
| Te pāmahana whakapiri mata | Tp | 280（10s） | 330（10s） | ℃ |
| Ngā Āhuatanga Hiko / Whatu (TC = 22 ± 3℃) | ||||||
|---|---|---|---|---|---|---|
| tawhā | Korona | Te Ainga Whakamatau | Ngā Uara Tawhā | Unit | ||
| Rangi Whanui | λ | - | 1000 ~ 1650 | nm | ||
| Awhe Auautanga | - | - | X-Rōpū | Ku - Pūoro | - | |
| Whānuitanga Tohu Iti | f-3DB | TC = 22 ± 3℃ | 0.3 ~ 12 | 0.8 ~ 18 | GHz | |
| Te kawenga | Re | VR =+5 V, Pin = 10mW | λ = 1310 nm | ≥ 0.75 | ≥ 0.75 | A / W |
| λ = 1550 nm | ≥ 0.7 | ≥ 0.7 | ||||
| Putanga VSWR | VSWR | - | ≤ 2 | ≤ 2.2 | - | |
| Te Whānuitanga o te Papatahi | A | TC =-45～+85 ℃ | ≤ ±1.5 | dB | ||
| Mana Whatu Mākūkū | Ps | VR =+5 V, λ = 1550 nm AC Whakarerekētia |
13 | dBm | ||
| Mana Putanga RF Mātotoru | Pi roto i | - | -10 | dBm | ||
| Au Pōuri | Id | VR = 5 V | ≤ 10 | nA | ||
| Te Putanga Huinga | RL | - | 50 | Ω | ||
● Ngā Āwhiowhio Tauhohenga Noa

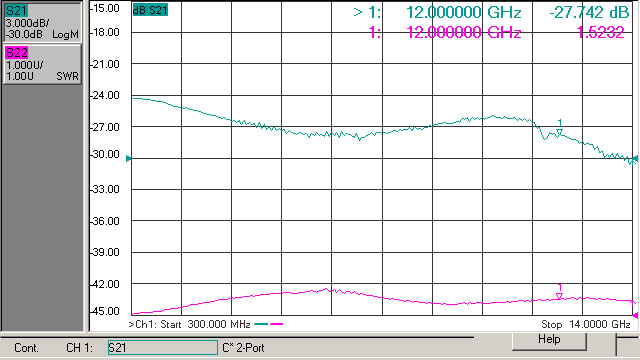

（Pikitia 1 X - Tauhohenga Auau o te Pūoko Whakaahua Rorohiko）

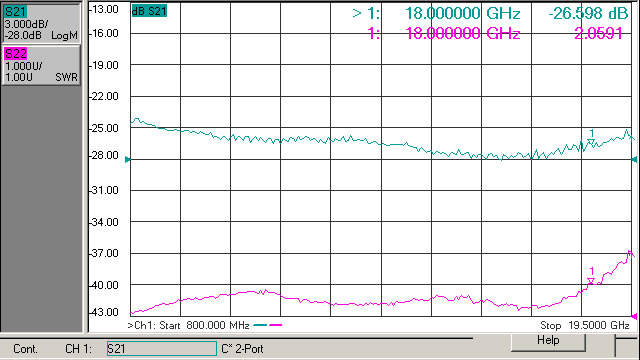

（Pikitia 2 Ku - Pūoko Whakaahua-a-Roopu Urupare Auau）

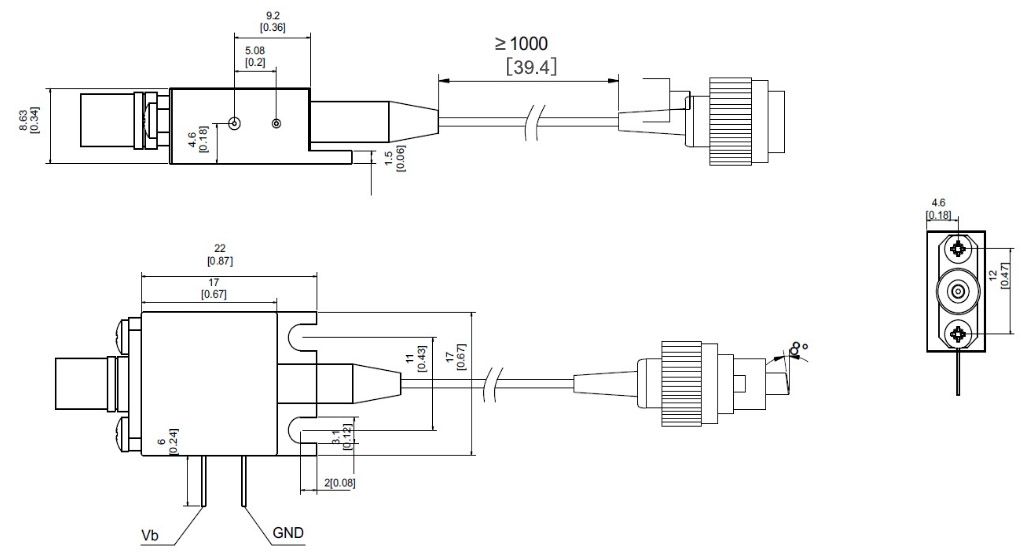

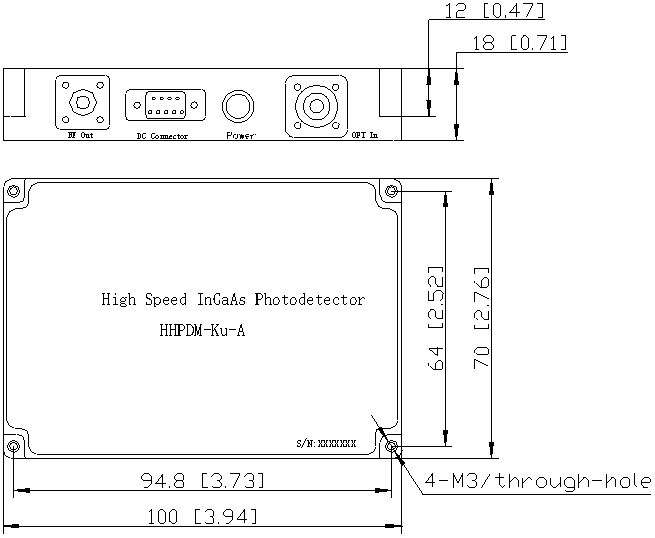

● Ahu me ngā Pine (Wāhanga: inihi)
Hononga RF: Hononga SMA
●Whakaaetanga Whakamutunga
Whārangi 1：
| Code | Whānuitanga Analog |
| X | 0.3 ~ 12 GHz |
| Ku | 0.8 ~ 18 GHz |
Whārangi 2：
| Code | Momo Tūhono | parau |
| N | Kāore he Hononga | Aratau-kotahi 9 / 125 μm muka hiku |
| A | FC / APC |
● Ngā Whakatūpato
Ko te pūtoro piko o te muka kaua e iti iho i te 20mm hei karo i te pakaru o te muka.
Kia tino ma te taha hononga muka i mua i te hono atu ki te ara iahiko whatu.
E hiahiatia ana te tiakitanga ESD e tika ana mō te rokiroki, te kawe me te whakamahi.
Ka taea te whakarite i ā mātou taputapu whakaahua paerewa katoa kia rite ki ngā kōwae!
tono
Whakawhitiwhiti kōrero muka-whatu
Te Tukatuka Mōhiohio Radar
Te Pakanga Tiko
Te Whakamātautau me te Ine i te Tohu Tere-Tiketike
Haumaru me te Tirotiro
