LK-HSPD High Speed ​​InGaAs Photodetector

  • Whānuitanga Whānui, Tere Tere
  • Whakauruhia te Pīhanga-T
  • Hononga DC
  • Hononga SMA kua hiritia ā-hiri
  • He iti te au pōuri, he teitei te ōwehenga tohu-ki-haruru.
  • Āhua Iti.
ENQUIRY

+ 86 29 88244373

Whakaahuatanga Hua

Kua hangaia te waeine kimi tere-teitei LK-HSPD kia tutuki ai ngā whakamahinga matihiko me ngā whakamahinga anaro. Kei tēnei waeine he photodiode PIN InGaAs he roangaru urupare kei waenganui i te 1250 ki te 1650 nm, me ngā hikohiko taurite nui.

Ka taea e te LK-HSPD te tuku i ngā whānui o te 8 GHz, 12 GHz, 18 GHz, 22 GHz, me te 30 GHz. Ko te mahi a te kōwae e hangai ana ki te pūtake hiko o te +3.3V, o te +5V rānei, i runga i te tauira motuhake. Kua hangaia kia mahi tahi me te muka aratau-kotahi paerewa o te 9/125μm. Kei roto i te putanga RF he hononga hototahi ki te SMA, he hononga 2.92 mm rānei, e rua me te taurite aukati 50 ohm.

Kua hiritia te LK-HSPD kia kore ai e pāngia e ngā āhuatanga taiao, kia pakari ai, kia pono ai hoki. He māmā te hoahoa, he iti iho i te 15 karamu te taumaha, he mea tino pai mō ngā tono e nui ai te taumaha. Kua whakamanahia te waeine i raro i te Ture Whakawhāiti i ngā Matū Morearea (RoHS) 2.0, e whakaū ana i tōna tutuki i ngā ture taiao me te haumaru pakari.

Whakatakotoranga Hangarau
Whakatauranga Noa me te Whakatauranga Mōrahi Tino
tawhā Sym. momo whakatauranga Unit
Whai wāhi pāmahana rokiroki TSTG -45 ～ +85 -55 ～ +100 ℃
Awhe pāmahana o te kēhi whakahaere TC 25 -40 ～ +85 ℃
Ngaohiko Pīra VR 3.3, 5 rānei 2.8 ~ 5.25 V
Mana Whakauru Whatu Pin +3 + 10 dBm
Mana Whatu Pakaru PB - + 13 dBm
Te pāmahana whakapiri mata Tp 280（10s） 330（10s） ℃
Ngā Āhuatanga Hiko / Whatu (TC = 22 ± 3 ℃)
tawhā Korona Te Ainga Whakamatau Ngā Uara Tawhā Unit
Rangi Whanui λ - 1000 ~ 1650 nm
Awhe Auautanga - - C-Band X-Band Ku-Band Ku+-Pūoro K+-Pūoro PLUS -
Whānuitanga Tohu Iti f-3DB TC= 22 ± 3℃ 0.1 ~ 8 0.3 ~ 12 0.8 ~ 18 2 ~ 22 2 ~ 30 0.3 ~ 18 GHz
Te kawenga Re VR , Pin=1mW λ = 1310nm ≥ 0.85 ≥ 0.85 ≥ 0.8 ≥ 0.75 ≥ 0.75 ≥ 0.75 A / W
λ = 1550nm ≥ 0.95 ≥ 0.95 ≥ 0.75 ≥ 0.70 ≥ 0.65 ≥ 0.70
Te Whānuitanga o te Papatahi A TC =-40～+85 ℃ ≤ ± 1.5 ≤ ± 1.5 ≤ ±1.5 ≤ ± 2 ≤ ± 2 ≤ ± 1.5 dB
Putanga VSWR VSWR - ≤ 2 ≤ 2 ≤ 2.5 ≤ 2.5 ≤ 2.5 ≤ 2.5 -
Ngaohiko Pīra VR - + 3.3 + 3.3 + 3.3 + 3.3 +5 +5 V
Tuhono RF - - SMA SMA SMA 2.92mm 2.92mm SMA -
Mana Whatu Mākūkū Ps VR , λ = 1550nm
AC Whakarerekētia		 +7 +7 +7 +7 +7 + 10 dBm
Au Pōuri Id VR ≤ 10 ≤ 10 ≤ 10 ≤ 10 ≤ 10 ≤ 10 nA
Mana Putanga RF Mātotoru Pout - -10 dBm
Te Putanga Huinga RL - 50 Ω

● Ngā Āwhio Urupare Noa

(VR , λ=1550nm , TC =25 ºC , Pin=0dBm)

(Pikitia 1. Te Urupare Auau o te Pūoko Whakaahua-C-Band)

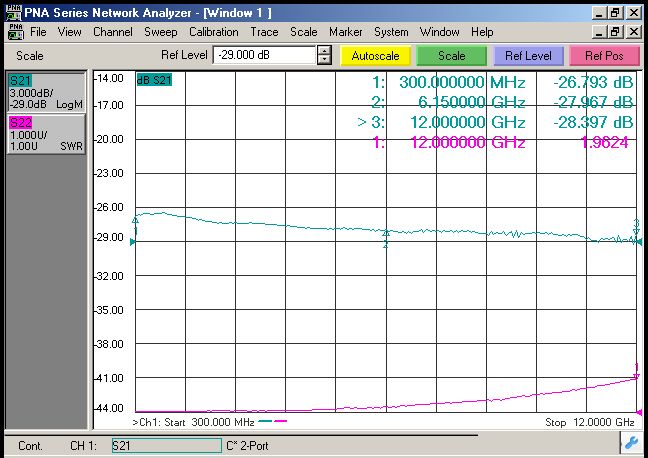

(Pikitia 2 Te Urupare Auau o te Kaiwhakaahua X-Band)

(Pikitia 3. Te Urupare Auau o te Pūoko Whakaahua Ku-Band)

(Pikitia 4. Te Urupare Auau o te Pūoko Whakaahua K+ -Band)

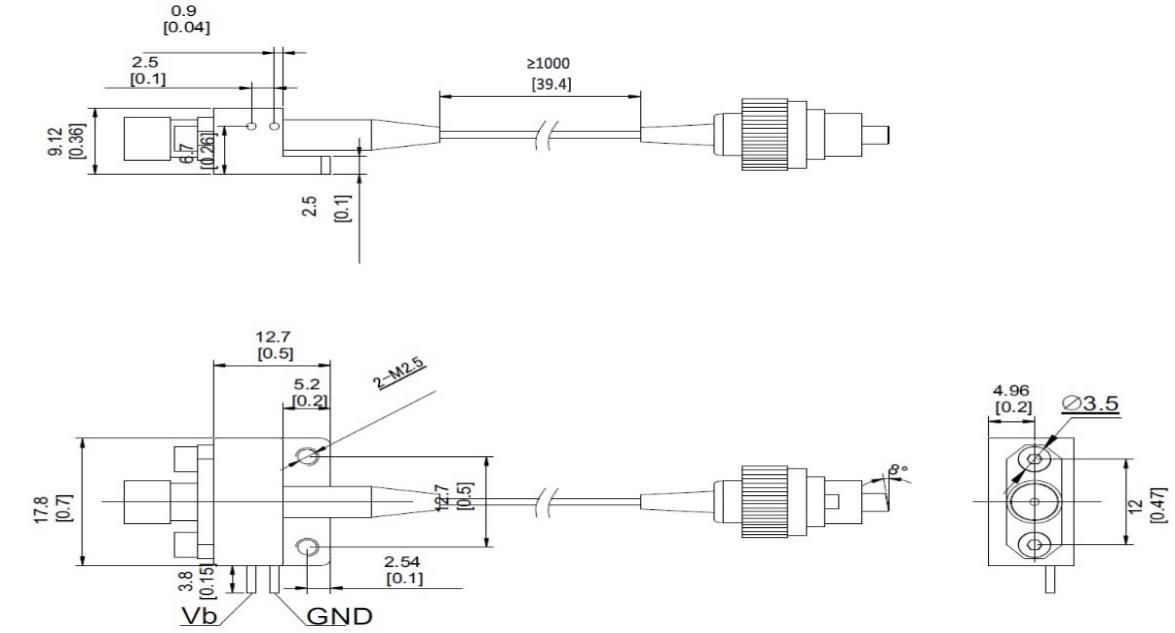

● Ahu me ngā Pine (Wāhanga:mm[ inihi])

Hononga RF： SMA, 2.92mm rānei

● Ngā Mōhiohio Tono

Whārangi 1：

Code  Whānuitanga Analog
C 0.1 ~ 8GHz
X 0.3 ~ 12 GHz
Ku 0.8 ~ 18 GHz
Ku+ 2 ~ 22 GHz
K+ 2 ~ 30 GHz
Plus 0.3 ~ 18 GHz

Whārangi 2：

Code Momo Tūhono parau
N Kāore he Hononga Aratau-kotahi 9/125 μm muka hiku
A FC / APC
P FC/PC

● Ngā Whakatūpato

  • Ko te pūtoro piko o te muka kaua e iti iho i te 20mm hei karo i te pakaru o te muka.

  • Kia tino ma te taha hononga muka i mua i te hono atu ki te ara iahiko-whakaahua.

  • E hiahiatia ana te tiakitanga ESD e tika ana mō te rokiroki, te kawe me te whakamahi.

Ka taea te whakarite i ā mātou taputapu whakaahua paerewa katoa kia rite ki ngā kōwae!

tono

  • Whakawhitiwhiti kōrero muka-whatu

  • Te Tukatuka Mōhiohio Radar

  • Te Pakanga Tiko

  • Te Whakamātautau me te Ine i te Tohu Tere-Tiketike

  • Haumaru me te Tirotiro
